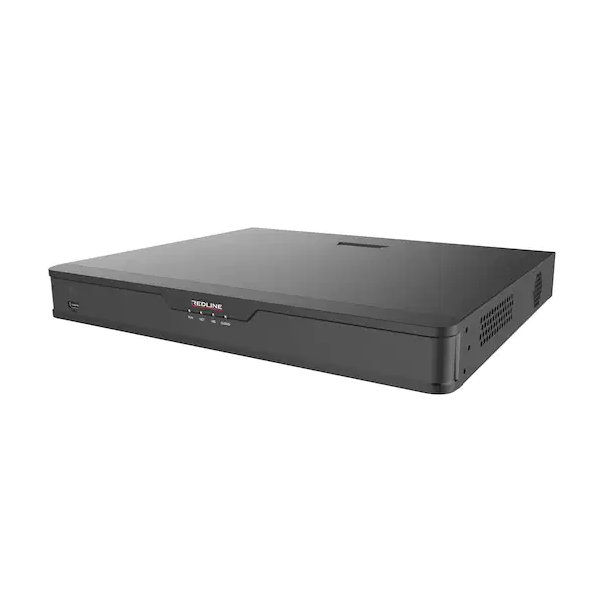

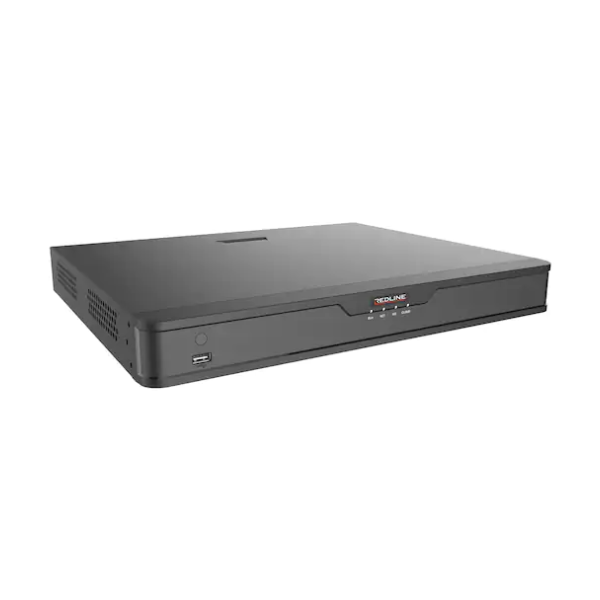

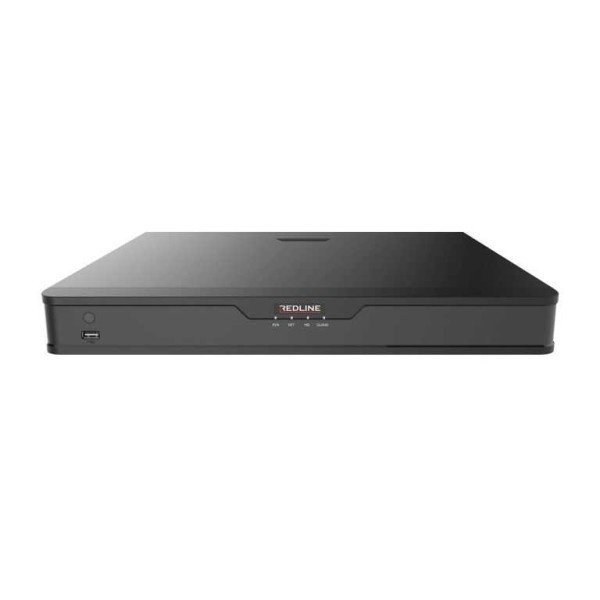

Ürün Adı: Redline SM-7004 4 Kanal XVR Kayıt Cihazı
Ürün Bilgisi
Analog Video Input
4-ch, BNC
IP Video Input
2-ch(only IP up to 6ch), each channel up to 4MP
Supported Analog Camera Types
Support AHD input: 5MP@20fps(The first channel) 5MP@12fps 4MP@15fps 1080P@30fps 720P@60fps Support TVI input: 5MP@20fps(The first channel) 5MP@12fps 4MP@15fps 1080P@30fps 720P@60fps Support CVI input: 5MP@20fps(The first channel) 4MP@15fps 1080P@30fps 720P@30fps Support CVBS input
Audio Input
1-ch, RCA
Two-way Audio
1-ch, RCA
Incoming Bandwidth
48Mbps
Outgoing Bandwidth
60Mbps
Remote Users
128
Protocols
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
VGA Output
1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output
1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio Output
1-ch, RCA
Synchronous Playback
4-ch
Recording Resolution
5MP Lite/4MP Lite /1080P/720P/4CIF/CIF
Recording Frame Rate
Main stream: 5MP Lite@12fps 4MP Lite@15fps 2MP@15fps 720P@30fps Sub stream: D1@30fps(Max)
SATA
1 SATA interface
Capacity
Up to 6TB for each HDD
Network Interface
1RJ45 10M/100M self-adapxive Ethernet Interface
USB Interface
Rear panel:2 x USB2.0
Power Supply
12V DC Power Consumpxion: ? 8 W ( without HDD )
Dimensions(W×D×H)
255mm ×215mm× 42mm (10.0" × 8.5"×1.7")
Weight ( without HDD )
?1.1 Kg ( 2.42lb )
