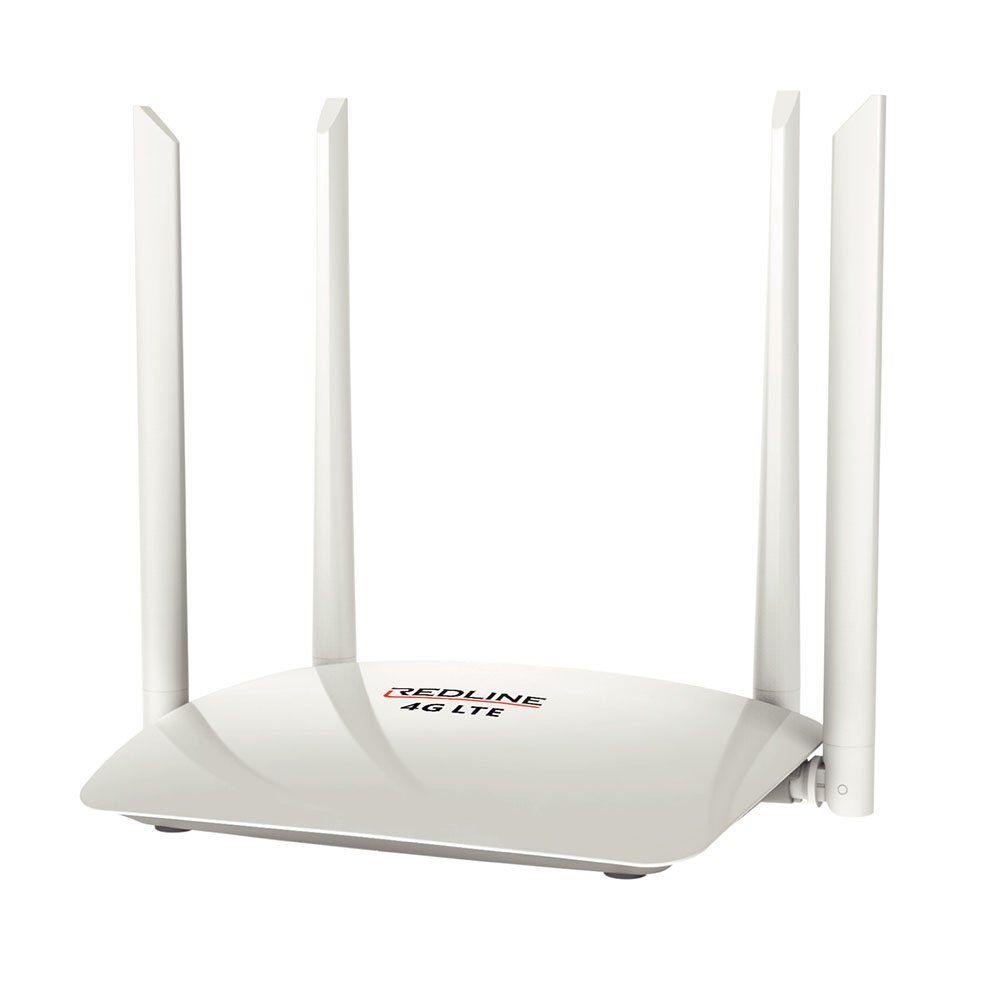

Redline LTE-20 Router

Redline LTE-20 Router

Redline LTE-20 Router
Mobil operatörle uyumludur
EU BAND: LTE:-FDD B1/B3/B5/B7/B8/B20/B28
LTE-TDD:B38/B39/B40/B41 WCDMA:B1/B5/B8
4G Yönlendirici Modu (4in1 Mod), 4G+Router (Çift Erişim) Modu, Repeater Modu ve AP Modu
WLAN işlevi (Kolay kablosuz ağ genişletme)
Gezici ağ önleme (Çoklu kablosuz ağ güvenliği)
IP geniş bant kontrolü
Destek web sayfası yönetimi
Kolay Kurulum
Ağ trafiği istatistiklerini destekler
Aynı anda 32 WIFI cihazını çevrimiçi olarak destekler
Teknik Özellikler
CPU    MT7628/580MHz
DRAM/FLASH    64MB DDR2/8M SPI

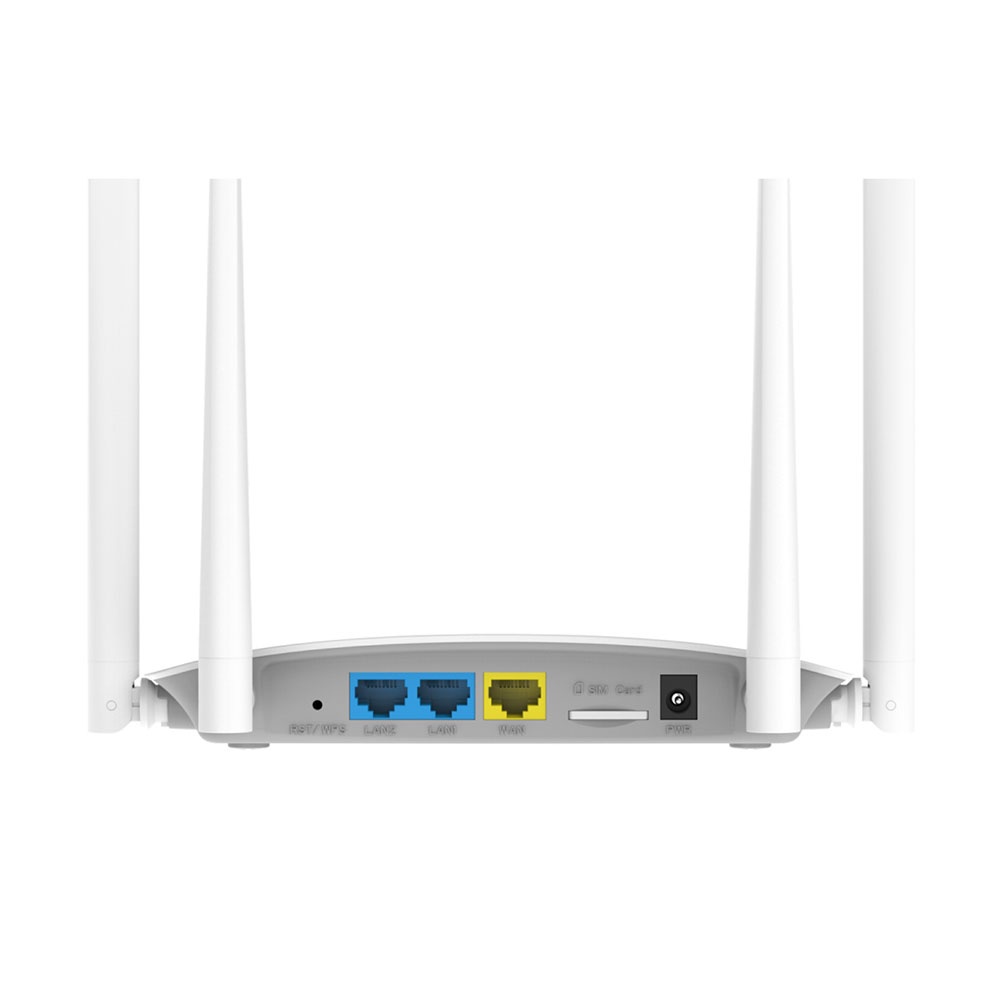

Interface    Power Indication LED， WiFi Indication LED， LAN/WAN Interface Status LED，Internet Status LED, Signal Strength LED
Antenna    2.4G(802.11N):2T2R 4G :2T2R
Gain    2.4G :5dBi 4G:1-4Dbi
Range    2.4-2.4835GHZ
LED    SYS
Transmit Power    "11b:1/2/5.5/11Mbps
11g:6/9/12/18/24/36/48/54Mbps
11n: 300Mbps (MAX)"
Spread-spectrum technique    DSSS
Data Encryption    WPA-PSK、WPA2-PSK、WPA/WPA2-PSK
Modulation type    "11b:CCK、QPSK、BPSK
11g:OFDM
11n:QPSK,BPSK,16-QAM,64-QAM"
Media access protocol    CAMA/CA with ACK
RF Power    "11b:18±1.5dBm@1-
11Mbps 11g:16±
1.5dBm@6-54Mbps
11n:15±1.5dBm@6-54Mbps"
Receiver Sensitivity    "11b:-95dBm@1Mbps,-89dbm@11Mbps,
11g: -92dBm@6Mbps,-72dbm@54Mbps,
11n: -85dBm@MCS0,,-70dbm@MCS7,
-86dBm@MCS8,-68dbm@MCS15,,"
4G Modulation type /GNSS    LTE CAT4(compatible with LCC/PCIE/M2 package)
GNSS function    GPS、GLONASS、BeiDou/Compass、Galileo、QZSS
4G module RF Power    "Class 4 (33dBm±2dB) for GSM850
Class 4 (33dBm±2dB) for EGSM900
Class 1 (30dBm±2dB) for DCS1800
Class 1 (30dBm±2dB) for PCS1900
Class E2 (27dBm±3dB) for GSM850 8-PSK
Class E2 (27dBm±3dB) for EGSM900 8-PSK
Class E2 (26dBm±3dB) for DCS1800 8-PSK
Class E2 (26dBm±3dB) for PCS1900 8-PSK
Class 3 (24dBm+1/-3dB) for WCDMA bands"
LTE Character    "Support 3GPP R8 non-CA cat 4 FDD
Support 1.4MHZ-20MHZ RF bandwidth UL support MIMO
LTD-FDD: DL 150Mbps(MAX)
UL 50Mbps(MAX)"
TD-SCDMA Character    "Support CCSA Release 3 TD-SCDMA
DL(MAX) 4.2Mbps
UL(MAX)2.2Mbps"
Software function    Router mode
4G mode

WAN setting
LAN setting
Mac clone
DNS
2.4GWIFI setting
2.4G guest network setting
2.4G channel setting
2.4G signal strength setting
2.4G channel optimization

Black list setting
Bonding list
Children protection list
Web blacklist
Modify administrator password
QoS
Static bonding
Forbidden connection
Restore to default setting
Restart router
Firmware upgrade local/online

Network speed testing
L2TP client
PPTP client
UPNP
DMZ
Remote web management
Port forwarding
Virtual server"
